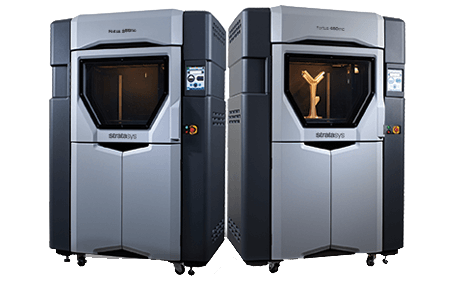

Fortus 380mc and 450mc

Advanced Prototyping and Production

Advanced Prototyping and Production

The Fortus 380mc and 450mc build parts in the materials you’re familiar with, but with the advanced complexity and high requirements needed for today’s manufacturers. With easy-to-use interfaces and software controls, the Fortus printing systems make it easy to produce complex parts more efficiently and effectively.

For demanding applications, rely on the Fortus 450mc for high-performance materials such as FDM Nylon 12CF (carbon fiber) , ULTEM™ resins and ST-130 soluble material for sacrificial composite tooling.

Complex, high-requirement parts production means you can embed hardware, circuitry, and other non-thermoplastic materials into your parts easily, with minimal downtime for changeover.

High-capacity material options on the 450mc increase your unattended build time up to two full weeks.

Advanced additive manufacturing is combined with the latest advances in FDM technology so you can expand your manufacturing business with speed, agility, and the freedom of your own designs.

Reduced operation and training time since Fortus systems require minimal training to operate and maintain, with a simple touchscreen interface and easy-to-replace build trays and loading options.

No special facility requirements means you can install the Fortus printing systems anywhere since they produce no noxious fumes, chemicals or waste.

3D Print with Nylon 12 Carbon Fiber

Fortus systems are based on Stratasys FDM technology, so you can build durable parts in production-grade and high-performance thermoplastics. The Fortus 380mc gives you the option of up to eight different materials*. The Fortus 450mc lets you build larger parts with those familiar materials, as well as high-performance thermoplastics* such as FDM Nylon 12CF (carbon fiber) and ULTEM™ resins, for specialized industries like medical, aerospace, research and defense. Create high-performance and complex parts without the need for additional employee training, as the Fortus systems come equipped with an intuitive touchscreen interface for an efficient workflow.

*Standard and engineering thermoplastics: Both the Fortus 380mc and 450mc. High-performance thermoplastics and sacrificial tooling material: Fortus 450mc only.

Specifications

SYSTEM SIZE AND WEIGHT : 129.5 x 90.2 x 198.4 cm (51 x 35.5 x 78.1 in)
601 kg (1325 lbs) without crate; 680 kg (1500 lbs) with crate

BUILD SIZE
380mc: 355 x 305 x 305 mm (14 x 12 x 12 in)
450mc: 406 x 355 x 406 mm (16 x 14 x 16 in)

LAYER THICKNESS

  • 0.330 mm (0.013 in): ABS-M30, ABS-M30i, Antero 800NA, ASA, FDM Nylon 12, PC (all types), ULTEM™ resin (all types, 450mc only), ST-130 (450mc only)
  • 0.254 mm (0.010 in): ABS (all types), ASA, FDM Nylon 12, PC (all types), ULTEM™ resin (all types)
  • 0.178 mm (0.007 in): ABS-ESD7, ABS-M30i, ASA, FDM Nylon 12, PC (all types)
  • 0.127 mm (0.005 in): ABS-M30, ABS-M30i, ASA, PC (all types)

ACCURACY : Parts are produced within an accuracy of ± .127 mm (± .005 in.) or ± .0015 mm/mm (± .0015 in/in), whichever is greater). Z part accuracy includes an additional tolerance of -0.000/+slice height.
Note: Accuracy is geometry-dependent. Achievable accuracy specification derived from statistical data at 95% dimensional yield.

Download the Spec Sheet

Software

GrabCAD Print software makes 3D printing easy, accessible, and connected for Stratasys 3D Printers. Read and understand CAD files natively to help you simplify the preparation, scheduling, monitoring, and reporting of all your print jobs. GrabCAD Print offers an efficient workflow that streamlines job management in shared office and model shop environments using Stratasys 3D Printers.

  • Print directly from CAD
  • Stay up to date with notifications
  • Monitor material levels
  • Organize print queues

Insight Software lets you print directly from your favorite CAD formats, eliminating the STL conversion and adjusting you used to do before printing. Optimize your productions with advanced control options that automatically adjust support structures and material extrusion paths, while giving you the ability to pause production in order to change materials or embed hardware or circuitry. Control Center lets you seamlessly share project information between users, creating a more streamlined, efficient workflow.

  • All Fortus systems include Insight and Control Center job processing and management software.
  • Compatible with GrabCAD Print for use with job reports, scheduling and remote monitoring.

Operating System

Microsoft Windows 10, Microsoft Windows 8.1 and Windows 8 (Pro and Enterprise), Microsoft Windows 7 (Pro, Enterprise and Ultimate), Microsoft Windows Vista (Business, Enterprise and Ultimate), Microsoft Windows Server 2008, Microsoft Windows Server 2003
