Stratasys J750 – The ultimate full-color, multi-material 3D printer

Stratasys J750

The ultimate full-color, multi-material 3D printer

If seeing is believing, holding something this real is knowing for sure. The Stratasys J750 3D Printer lends form and substance to your brightest ideas and boldest ambitions with lifelike colors and materials that make uncertainty obsolete.

J750_AngleRight_Open

You design. The Stratasys J750 does the rest.

Combining imaging, ingenuity, research and resolve, your team has modeled something truly amazing. Hold it in your hands without extra steps and stipulations. New features, available only on the Stratasys J750, will change the way you look at 3D printing.

Automatic color mapping
Color comes naturally to the Stratasys J750: neutrals and neons, shadows and highlights, textures and gradients — over 360,000 colors automatically mapped from your design software for photorealistic models.

Easy material selection
Load six materials at once for sweeping variety without swapping canisters. Assign any combination of rigid, flexible, transparent or opaque materials and their composites to a single model or assorted tray. Material selection is fast, simple and fun. Learn more about Digital Materials.

Finer layers and faster 3D printing3D Printed Liver on a Stratasys J750
Produce ultra-smooth surfaces and fine details with layer thickness as fine as 0.014 mm — about half the width of a human skin cell. Plus, next-generation print heads double the number of nozzles for increased speed and print quality.



PolyJet for production

Detail and realism
Create precise threading or crisp tracking codes directly from CAD. With 14-micron layer resolution, the Stratasys J750 lets you see, touch, test and perfect every detail.

Great throughput
With a spacious build envelope and the ability to widely vary materials within a single print job, you can pack a tray with assorted parts to power through tool and prototype production.

Efficiency
Spend less time processing parts. PolyJet models are smooth, beautiful and ready to handle without additional curing or post-processing.

Cost performance
Faster 3D printing, fewer material changeovers and automatic color mapping maximize your productivity, so the Stratasys J750 achieves a low cost per part.

Customer success: Synergy

This mobile phone charger sleeve was prototyped with many image options.Synergy transforms bright ideas into viably manufacturable, marketable products. Learn how they used the Stratasys J750 to eliminate six expensive and time-consuming operations from their prototyping process, reducing the cost of a single prototype by over 70 percent.



“Now our customers can make instant decisions about the ergonomics of a product — about the touch and feel — as well as test how it fits into its environment.”

— Tamar Fleisher, Synergy

Stratasys J750

Stratasys J750 Materials

The versatility of the Stratasys J750 stems from its high material capacity. By blending up to six materials in specific concentrations and microstructures, right on the build tray, it yields hundreds of thousands of colors, translucencies and durometers.

Full color gamut:
Blending Rigid Opaque materials, you can 3D print in over 360,000 colors for unmatched realism.

Flexibility:
Add Rubber-like materials for a range of bright and subtle colors, opacities and elastomer characteristics.

Translucency:
Incorporate transparent materials to vary tint and opacity.

Strength and durability:
Simulate standard ABS plastic to produce durable tools and prototypes that are tough and heat resistant. Combine with Rubber-like material for outstanding durability and a range of Shore A values.

Specifications

Download the Stratasys J750 spec sheet.

Model Materials

  • Vero family of opaque materials including neutral shades and vibrant colors
  • Tango family of flexible materials
  • Transparent VeroClear and RGD720

Digital Materials

Unlimited number of composite materials including:

  • Over 360,000 colors

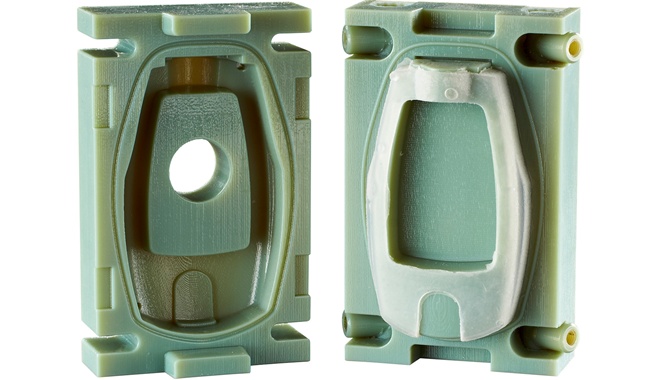

  • Digital ABS and Digital ABS2 in ivory and green
  • Rubber-like materials in a variety of Shore A values
  • Translucent color tints

Support Materials
SUP705 (WaterJet removable)

Build Size
490 x 390 x 200 mm (19.3 x 15.35 x 7.9 in.)

Layer Thickness
Horizontal build layers down to 14 microns (0.00055 in.)

Workstation Compatibility
Windows 7 and 8.1 64 bit

Network Connectivity
LAN – TCP/IP

System size and Weight

3D Printer:
1400 x 1260 x 1100 mm (55.1 x 49.6 x 43.4 in.); 430 kg (948 lbs.)

Material Cabinet:
670 x 1,170 x 640 mm (26.4 x 46.1 x 25.2 in.); 152 kg (335 lbs.)

Operating Conditions
Temperature 18-25 °C (64-77 °F); relative humidity 30-70% (non-condensing)

Power Requirements

  • 100–120 VAC, 50–60 Hz, 13.5 A, 1 phase
  • 220–240 VAC, 50–60 Hz, 7 A, 1 phase

Regulatory Compliance
CE, FCC, EAC

Software
PolyJet Studio 3D Printing Software

Build Modes

  • High Speed: up to 3 base resins, 27-micron (0.001 in.) resolution
  • High Quality: up to 6 base resins, 14-micron (0.00055 in.) resolution
  • High Mix: up to 6 base resins, 27-micron (0.001 in.) resolution

Accuracy
20-85 microns for features below 50 mm; up to 200 microns for full model size (for rigid materials only)

Resolution

  • X-axis: 600 dpi
  • Y-axis: 600 dpi
  • Z-axis: 1800 dpi

PolyJet Studio Software

Streamline your workflow starting with PolyJet Studio. This new software offers an intuitive interface that makes it easy to choose materials, optimize the build and manage print queues. It also significantly improves shell-based color assignment for STL and shell-based VRML files; an intuitive user interface; and ability to add color textures and gradients, saving you time during build preparation.
