ExtrAXION Rebars

The software tool that allows the rapid, high precision measurement of steel reinforcement, directly from the drawings.

ExtrAXION Rebars  The software tool that allows the rapid, high precision measurement of steel reinforcement, directly from the drawings.

The measurements of the reinforcement bars can be made on any structural drawing and regardless of the software program used to generate it.

It can be used for all types of reinforced concrete jobs. It is designed for quantity surveyors, estimators, civil engineers, builders and contractors who need to have accurate data on the quantities of reinforcement required.

Watch VDO Tutorial >>

Organize

Build a flexible folder-like layout  and add the drawings according to project structure.

The rebar measurement are organized in a tree-like view  with structural elements, sub-structural elements and the steel bars at the lowest level.

Easily check for any errors or omissions  either on the drawing or on the tree-view to identify any bars that have not been measured.

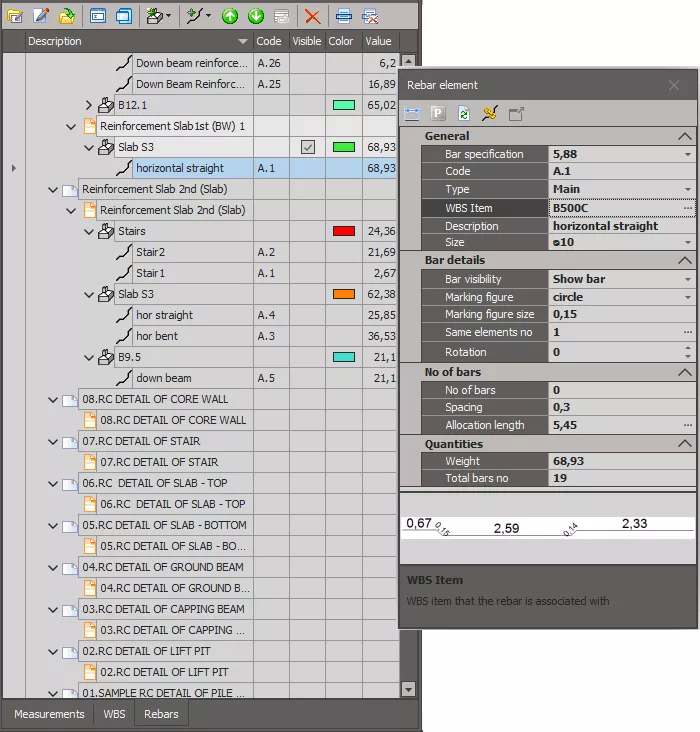

ExtrAXION Rebars Organize

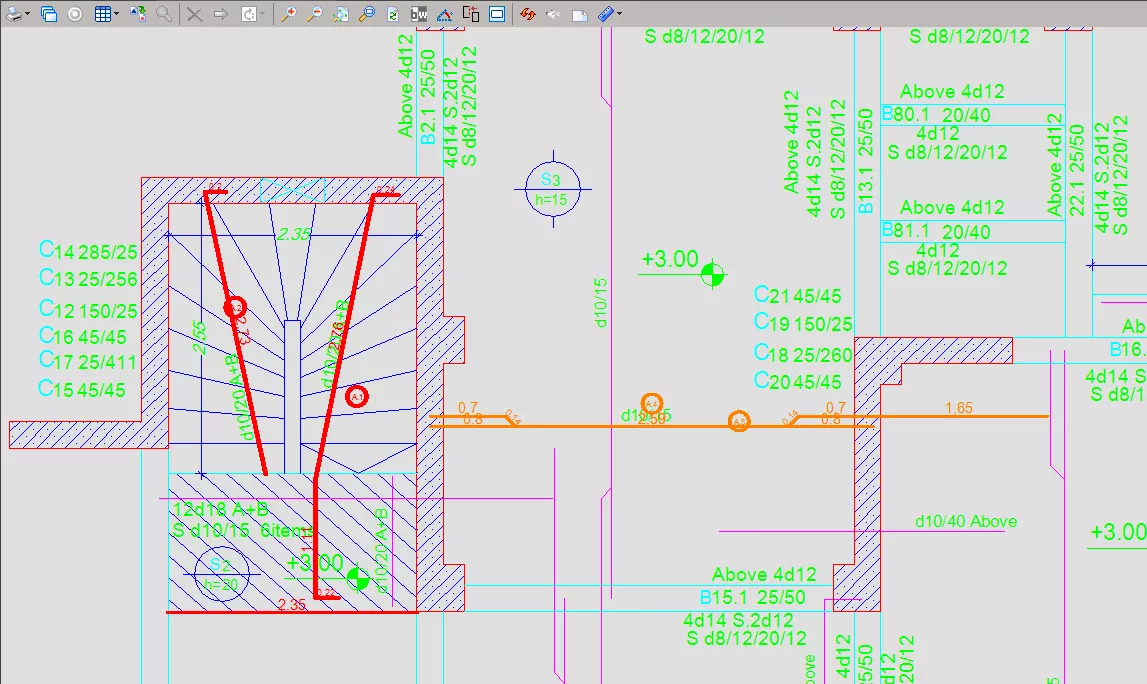

ExtrAXION Rebars Measure

Measure

Steel bar can be measured in different ways  Draw/select their segments on the drawing or select the respective figure from the library and specify each side’s length.

Each steel bar belongs to a structure element and is automatically given a code  The user specifies the rebar size, link it to a BOQ item and indicate whether it is a main, additional or auxiliary reinforcement.

Optionally set the rebar rotation  for a better fit in the resulting tables.

Provide the length of a dimension that a rebar is repeatd  e.g. across the dimension of a slab, and the total number of rebars is automatically calculated.

Table

Generate detailed reinforcement tables  by selecting the rebars to be included.

Export the tables  in xls format.

ExtrAXION Rebars Tables

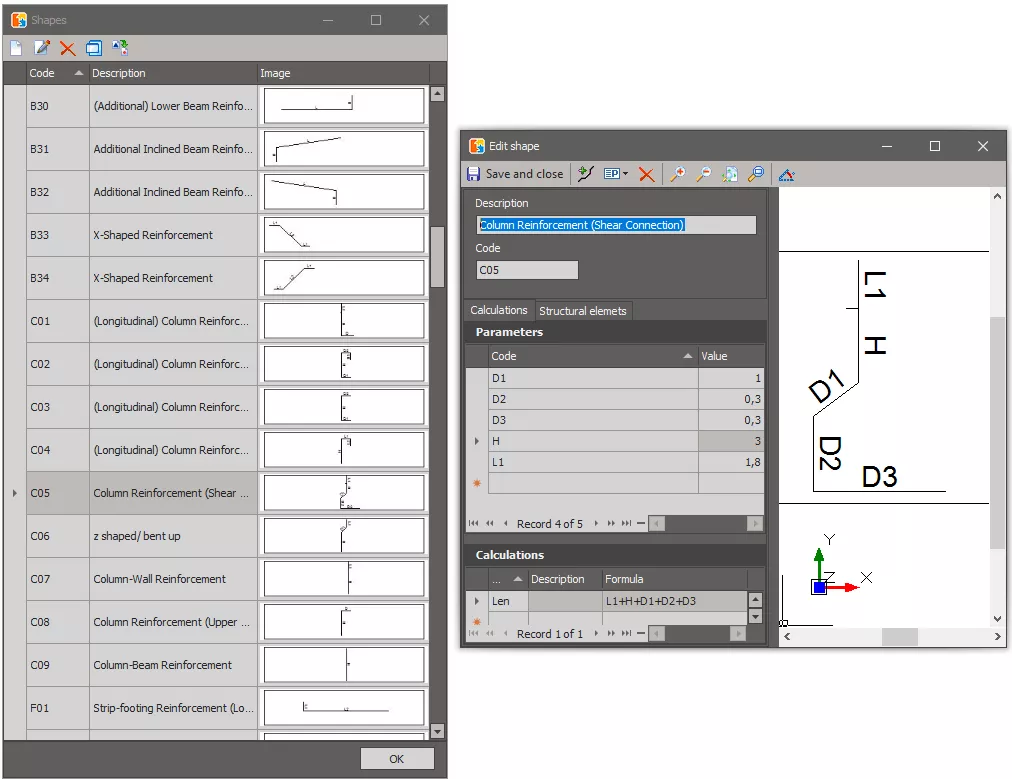

ExtrAXION Rebars Library

Library

More than 150 Ready –made reinforcement shapes with default values built by experienced civil engineers are provided.

User can add new oe modify existing shapres  to cover any specific cases.

Metric and Imperial  bar sizes tables are available.

ExtrAXION Features and Benefits

  • ง่ายต่อการเรียนรู้ และไม่จำเป็นต้องมีความเชี่ยวชาญในการใช้โปรแกรมเขียนแบบ CAD มาก่อน
  • เพิ่มประสิทธิภาพ และลดระยะเวลาในการประมาณราคา
  • มีเครื่องมือ เช่น  Zoom – Snaps ช่วยเพิ่มความเร็ว และความถูกต้องในการทำงาน
  • สามาถกำหนดสีของพื้นที่ ในแต่ละห้องที่ได้มีการหาพื้นที่ไปแล้ว ซึ่งสีที่กำหนดจะไม่ซ้ำกัน และสามารถแก้ไขสีได้ ทำให้ง่ายต่อการมองเห็น และยังสามารถซ่อน พื้นที่ ที่ได้มีการทำสีไว้ทำให้ง่ายต่อการทำงาน
  • ข้อมูลในการวัดจะถูกเก็บไว้ในฐานข้อมูล ในรูปแบบของ Project ดังนั้นทั้งไฟล์ CAD, ไฟล์รูปภาพที่เกิดจากการแสกน, WBS, Takeoff Quantities และ ข้อมูลอื่นๆที่เกี่ยวข้อง ทำให้สามารถเข้าถึงข้อมูลได้ง่าย
  • สามารถทำงานบนไฟล์ CAD (dwg, dxf, dgn, etc) ไฟล์รูปภาพ (bmp, gif, jpg, etc) หรือไฟล์ PDF โดยไม่จำเป็นต้องมีโปรแกรมเขียนแบบ CAD เช่น AutoCAD
  • เก็บข้อมูลด้วย SQL Server ทำให้สามารถทำงาน และเข้าถึงข้อมูลในโครงการเดียวกัน ได้พร้อมกัน ทีละหลายๆคน
  • สามารถวัดค่าในมุมมองที่เป็น 3 มิติได้ และ สามารถเปลี่ยนมุมมองเป็นแบบ 3 มิติ เพื่อหมุน, วัดความยาว และหาพื้นที่ ในมุมมองที่เป็น 3 มิติ  ช่วยให้การตรวจสอบ และ การหาค่าความสูงของผนังในแนวตั้ง ทำได้ง่ายขึ้น ทำได้กับไฟล์งานที่เป็น CAD, รูปภาพ และ PDF
