Artec Leo
Easy 3D scanning: see your object projected in 3D directly on the HD display. The first 3D scanner to offer onboard automatic processing.
Overview
Artec Leo
Easy 3D scanning: see your object projected in 3D directly on the HD display
A smart professional 3D scanner for a next-generation user experience
The first 3D scanner to offer onboard automatic processing, Artec Leo is able to provide the most intuitive workflow, making 3D scanning as easy as taking a video. As you scan your object, see the 3D replica being built in real time on Leo’s touch panel screen. Rotate the 3D model, check if you have captured all areas, and fill in any parts you may have missed.
Download Artec Leo brochure
Artec Leo technical specs*
A quantum leap above industry standard Artec Eva
| Display | Built-in half HD touch panel screen |
| Processing | On-board real-time processing |
| Volume capture zone | Over double the size |
| 3D reconstruction rate, up to | Leo: 80 FPS, Eva: 16 FPS |
| 3D resolution, up to | 0.2 mm |
| 3D point accuracy, up to | 0.1 mm |
| Color resolution | 2.3 mp |
| Structured light source | VCSEL |
| Position sensors | Built-in 9 DoF inertial system |
| Connectivity | Wireless connectivity and data transfer |
| Power source | In-built exchangeable battery, optional mains power |
| Multi-core processing | NVIDIA® Jetson™ TX1 |
*Specifications under consideration
Breakthrough 3D scanning speed
The 80 frames per second 3D reconstruction rate makes Artec Leo the fastest professional handheld 3D scanner on the market. Furthermore, with its large field of view, Artec Leo can 3D scan and process even large objects and scenes fast and accurately. And for even greater precision, users can point the scanner closer to the object to pick up intricate detail, just as they would zoom in with a video camera.
3D Model

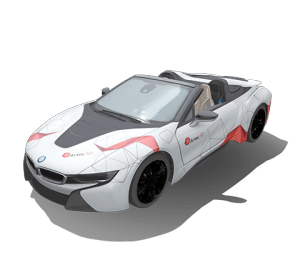

Car
- Scanners: Artec Leo
- Scanning time: 5 hours
- Processing time: approximately 7 days
- Number of scans: 210
- Texture: Textures were processed using PBR materials and data from photogrammetry.

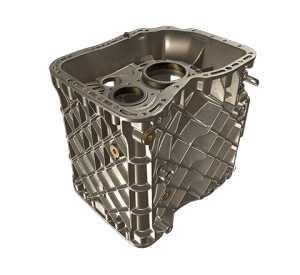

Dual-clutch gearbox
- Scanners: Artec Leo
- Scanning time: 15 minutes
- Processing time: 70–80 minutes

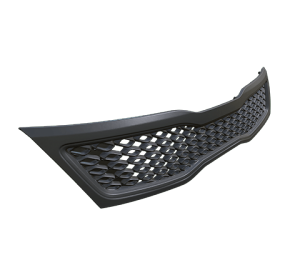

Radiator grille HD
- Scanners: Artec Leo
- Scanning time: 7 minutes
- HD reconstruction time: 13 minutes
- Processing time: 35 minutes
Motorcycle engine HD
- Scanners: Artec Leo
- Scanning time: 12 minutes
- HD reconstruction time: 18 minutes
- Processing time: 40 minutes
Miss Lucy, aka “Scoots”
- Scanners: Artec Leo
- Scanning time: 30 seconds
- Processing time: <1 hour
Triceratops skull
- Scanners: Artec Leo
- Scanning time: 30 minutes
- Processing time: 2 hours
