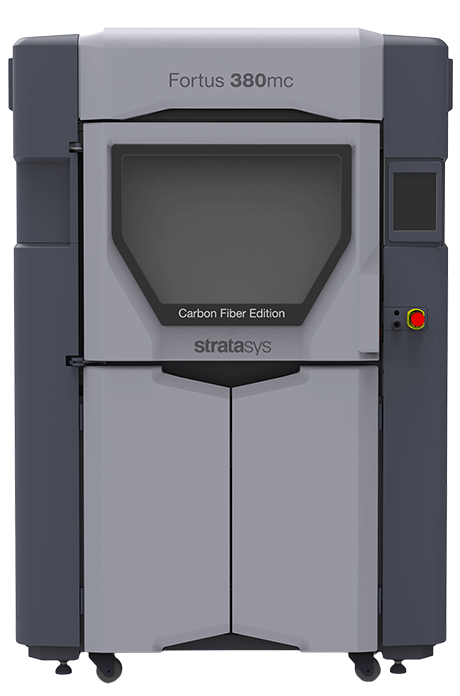

Fortus 380mc Carbon Fiber Edition
High-Strength Solution
High-Strength Solution
When the job demands exclusive production of accurate, high-strength parts for tough applications, rely on the Fortus 380mc Carbon Fiber Edition.
The Fortus 380mc Carbon Fiber Edition prints with FDM Nylon 12 Carbon Fiber and ASA. It’s a targeted solution for functional prototypes, production parts and rugged tooling that need the strength and stiffness of carbon-filled composite material.
Dedicated to Print with Carbon-Filled Nylon 12
The Fortus 380mc Carbon Fiber Edition prints in two materials:
- FDM Nylon 12CF Carbon Fiber
- ASA
When you need the high strength and stiffness of carbon fiber, FDM Nylon 12CF is the answer. For less demanding applications like rapid prototyping, concept verification or any job that doesn’t require carbon fiber, use ASA. Both materials are compatible with soluble support for fast, hands-free removal of support material.
Specifications
SYSTEM SIZE AND WEIGHT : 129.5 cm x 90.2 cm x 198.4 cm (51 x 35.5 x 78.1 in.)
601 kg (1,325 lbs.)
BUILD SIZE : 355 x 305 x 305 mm (14 x 12 x 12 in.)
LAYER THICKNESS
- ASA
- 0.330 mm (0.013 in.)
- 0.254 mm (0.010 in.)
- 0.178 mm (0.007 in.)
- 0.127 mm (0.005 in.)
- FDM Nylon 12CF Carbon Fiber
- 0.254 mm (0.010 in.)
ACCURACY : Parts are produced within an accuracy of ± .127 mm (± .005 in.) or ± .0015 mm/mm (± .0015 in/in), whichever is greater). Z part accuracy includes an additional tolerance of -0.000/+slice height. Note: Accuracy is geometry dependent. Achievable accuracy specification derived from statistical data at 95% dimensional yield.
Bring Products to Market Faster
GrabCAD Print software makes 3D printing easy, accessible, and connected for Stratasys 3D Printers. Read and understand CAD files natively to help you simplify the preparation, scheduling, monitoring, and reporting of all your print jobs. GrabCAD Print offers an efficient workflow that streamlines job management in shared office and model shop environments using Stratasys 3D Printers.
- Print directly from CAD
- Stay up to date with notifications
- Monitor material levels
- Organize print queues
Insight Software lets you print directly from your favorite CAD formats, eliminating the STL conversion process. Optimize your productions with advanced control options that automatically adjust support structures and material extrusion paths, while giving you the ability to pause production to change materials or embed hardware or circuitry. Control Center lets you seamlessly share project information between users, creating a more streamlined, efficient workflow.
- All Fortus systems include Insight and Control Center job processing and management software.
- Compatible with GrabCAD Print for use with job reports, scheduling and remote monitoring.
Operating Systems
Microsoft Windows 8.1 and Windows 8 (Pro and Enterprise), Microsoft Windows 7 (Pro, Enterprise and Ultimate), Microsoft Windows Vista (Business, Enterprise and Ultimate), Microsoft Windows Server 2008, Microsoft Windows Server 2003.
